Washing & Extraction | High Spin

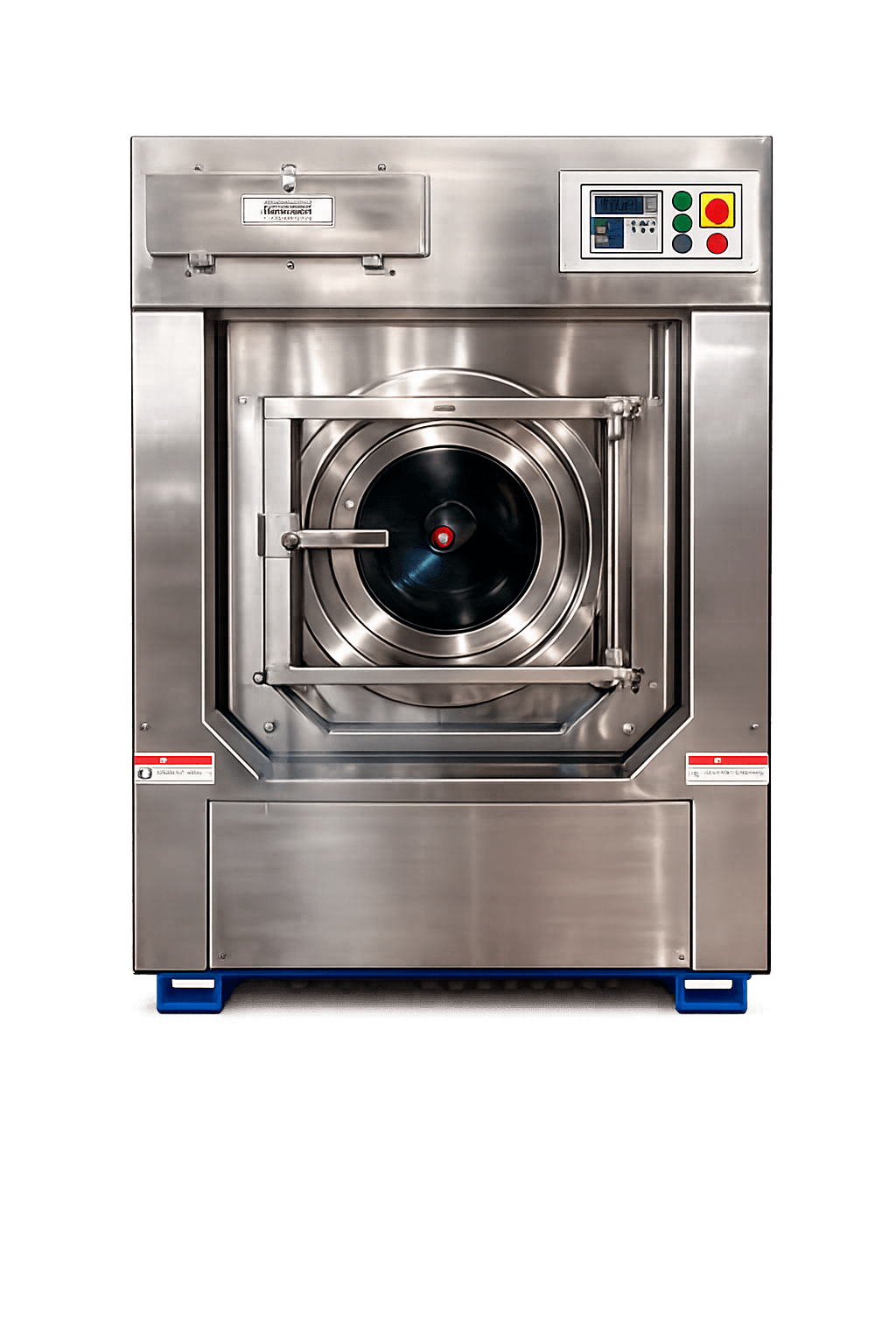

Industrial Washer Extractors
High-spin suspended washer extractors for compact wash and extraction cycles with programmable controls.
Technical specifications and selection details.
Use these indicative details to shortlist the right configuration. Final dimensions, power load, heating arrangement and model selection should be confirmed with Raj Sons before order.
15 kg30 kg60 kg120 kg
Buyer Checklist
- Daily kg load
- Preferred heating: electric or steam
- Water inlet and drain layout
- Required extraction speed
Features & Benefits
- Suspended high-spin design with industrial shock absorbers
- Microprocessor control with auto chemical dispenser
- Single motor VFD drive for wash, distribution and extract speeds
- Large interlocked door and motorized non-clog drain valve
- Low power, space-saving structure for commercial plants
Industrial Applications
- Hotels
- Hospitals
- Commercial laundries
- Garment washing units
- Institutional laundries
Product Guidance
Industrial washer extractor selection for laundry plants.
Industrial washer extractors are used when a plant needs washing, rinsing and final extraction in one controlled machine. The suspended high-spin format helps reduce retained moisture before drying, which can shorten drying tumbler time and improve daily linen throughput. Raj Sons positions these machines for hotels, hospitals, commercial laundries and garment washing units where wash quality, extraction force, operator safety and space planning all matter.
Capacity should be matched to the daily kg load, fabric mix and expected batch schedule. Electric heating suits sites without central steam, while steam heating can be more practical in plants that already run boilers or steam generators. Door access, drain capacity, water pressure and chemical dosing should be checked before finalizing the layout.
For a faster quote, share expected daily load, site city, preferred capacity, available utilities and current workflow for Industrial Washer Extractors. Raj Sons can compare options such as 15 kg, 30 kg, 60 kg, 120 kg for applications like Hotels, Hospitals, Commercial laundries and suggest whether the priority should be throughput, finish quality, compact footprint, lower heating load or process flexibility.
Planning Notes
- Use higher capacity models for bulk hotel linen and institutional loads that need fewer batches per shift.
- Confirm the drain route because high-spin extraction and fast dump cycles need reliable water discharge.
- Plan chemical dispenser access so detergent, bleach or softener dosing can be serviced without slowing operators.
- Share available utilities before ordering so heating, motor load and control options are selected correctly.
Specification table
Model RangeRS-WE Series
Capacity Options15 kg, 30 kg, 60 kg, 120 kg
Operating Voltage415 V +-10%
Frequency50 Hz
Final Extract RPMApprox. 650 to 1000 RPM by capacity
Extract ForceApprox. 350G
Basket Size Range720 x 380 mm to 1350 x 850 mm
Drive Motor RangeApprox. 2.2 kW to 18.5 kW
Heating OptionsElectric or steam
Specifications are indicative and may vary by machine model, customization and utility conditions.
