Extraction | Moisture Removal

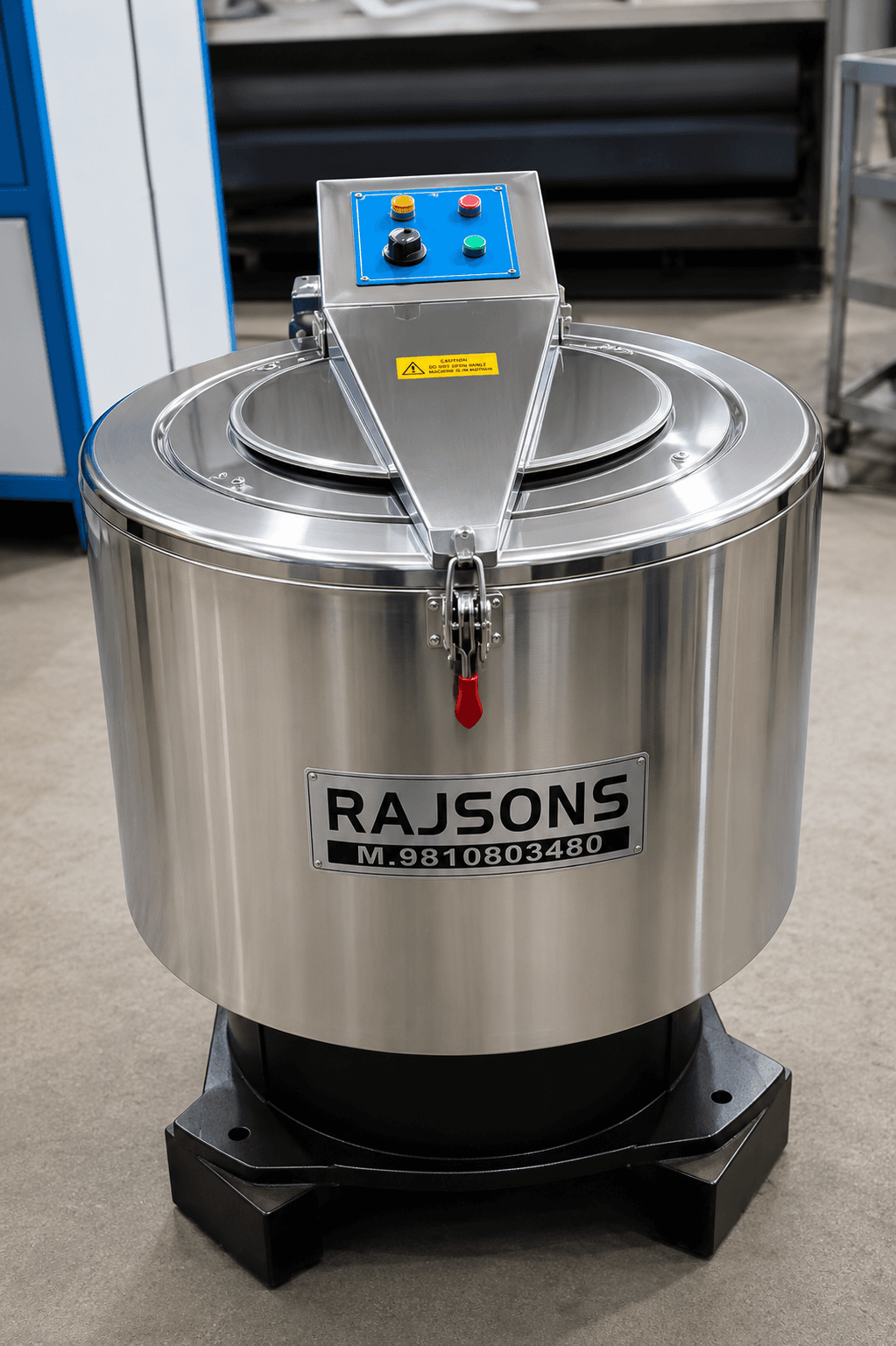

Hydro Extractor Machines
Industrial centrifuge machines for rapid water extraction from washed textiles and garments.
Technical specifications and selection details.
Use these indicative details to shortlist the right configuration. Final dimensions, power load, heating arrangement and model selection should be confirmed with Raj Sons before order.
7 kg10 kg15 kg30 kg60 kg120 kg
Buyer Checklist
- Load material
- Direct drive or suspension type
- Drain line size
- Moisture target
Features & Benefits
- Direct drive self-balancing models with DC injection brake
- Three-leg suspension models with spring-mounted body
- Rubber buffer and cone hydro extractor variants
- Electrically interlocked lid for operator safety
- Single/reverse phase and overload protection
Industrial Applications
- Textile processing
- Laundry units
- Garment plants
- Institutional washing
- Yarn cone extraction
Product Guidance
Hydro extractor guidance for rapid moisture removal.
Hydro extractors are dedicated centrifuge machines used after washing when a plant wants to remove water before drying, pressing or further textile processing. They can reduce drying time, improve handling weight and support production lines that use separate washers rather than washer extractors. Raj Sons includes direct drive, three-leg suspension, rubber buffer and cone hydro extractor options for laundry, textile and garment operations.
Model choice depends on the material being extracted, the load weight, basket style and required moisture target. Direct drive models reduce belt maintenance, three-leg suspension models suit heavier industrial use, rubber buffer models support compact extraction work, and cone extractors are intended for yarn cone applications. Drainage, balancing, lid safety and braking behavior should be reviewed before installation.
For a faster quote, share expected daily load, site city, preferred capacity, available utilities and current workflow for Hydro Extractor Machines. Raj Sons can compare options such as 7 kg, 10 kg, 15 kg, 30 kg for applications like Textile processing, Laundry units, Garment plants and suggest whether the priority should be throughput, finish quality, compact footprint, lower heating load or process flexibility.
Planning Notes
- Select the basket type around the load, such as loose garments, linen, textile pieces or yarn cones.
- Keep batch weights consistent so the extractor can balance quickly and run with less vibration.
- Confirm drain size and floor slope because extraction releases water rapidly during operation.
- Review lid interlock, braking and phase protection as part of operator safety planning.
Specification table
Model RangeRS-HE Series
Capacity Options7 kg to 120 kg
Basket SpeedApprox. 750 to 1400 RPM by model type
MotorApprox. 0.37 kW to 7.5 kW
Power SourceElectric
Build OptionsDirect drive, three-leg suspension, rubber buffer, cone extractor
Material DetailsStainless steel basket and outer drum
Specifications are indicative and may vary by machine model, customization and utility conditions.
