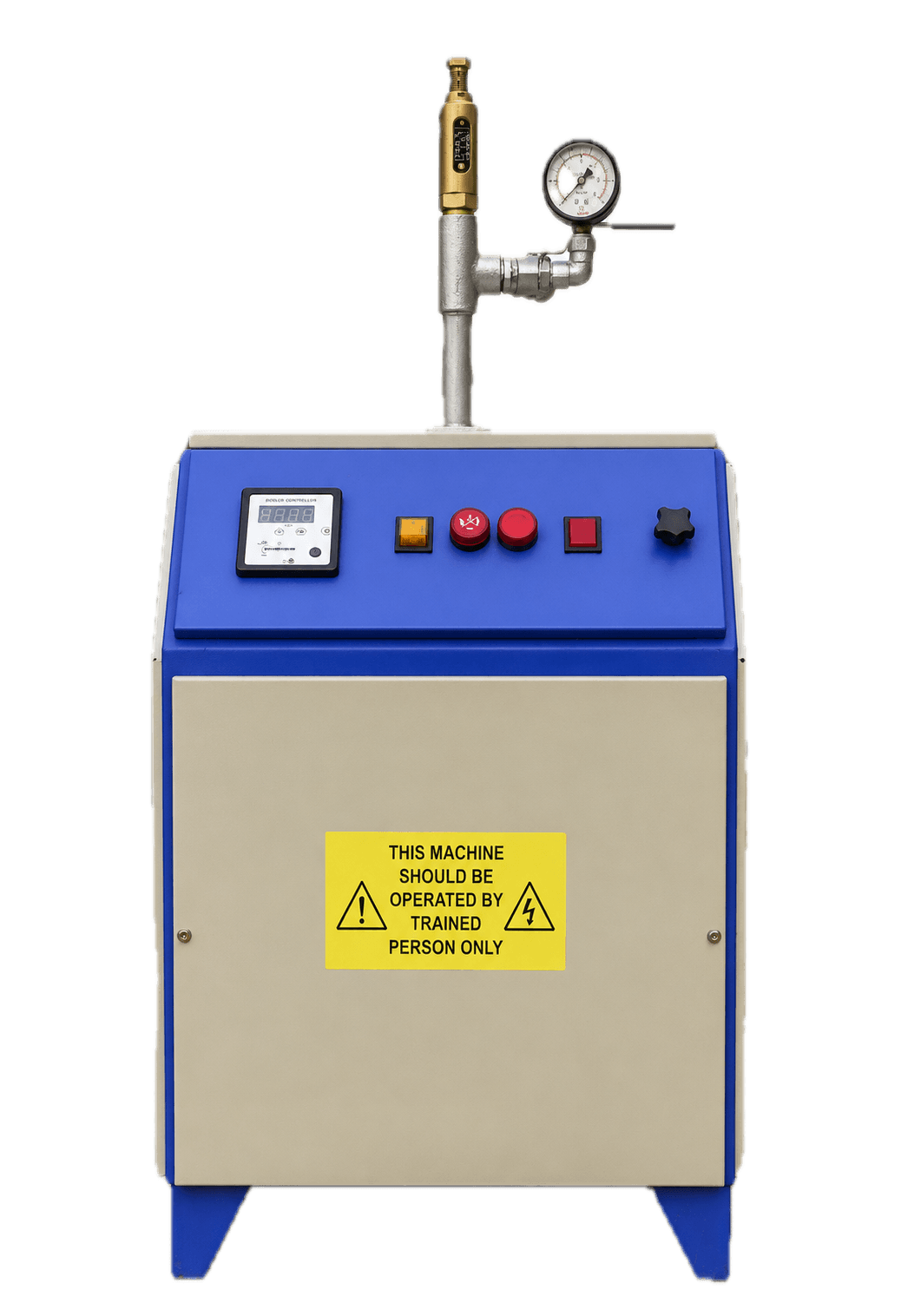

Steam Generators & Boilers
Electric, diesel-fired and oil-fired steam utility equipment for laundry and finishing lines.
Technical specifications and selection details.
Use these indicative details to shortlist the right configuration. Final dimensions, power load, heating arrangement and model selection should be confirmed with Raj Sons before order.
6 kW12 kW18 kW27 kW30 kg/hr50 kg/hr100 kg/hr
Buyer Checklist
- Connected equipment
- Steam pressure
- Fuel/electric availability
- Daily steam demand
Features & Benefits
- Fully automatic pressure and water level controls
- Safety valve, water level gauge and dry cutout
- Electric, diesel-fired and oil-fired options
- High pressure feed pump for automatic water injection
- Compact utility support for finishing equipment
Industrial Applications
- Ironing tables
- Flatwork ironers
- Laundry finishing
- Garment units
- Pressing lines
Product Guidance
Steam generator and boiler planning for laundry utilities.
Steam generators and boilers support the utility side of a laundry or garment finishing plant. Presses, vacuum tables, flatwork ironers and steam irons all need stable steam output to keep finishing quality consistent during operating hours. Raj Sons offers electric, diesel-fired and oil-fired steam options so buyers can match steam demand with available power, fuel, space and maintenance resources.
The correct system depends on connected equipment, required pressure, daily running hours and whether the plant expects future expansion. Electric steam generators can be compact and simple for smaller finishing rooms, while diesel or oil-fired systems may suit higher steam output. Feed water quality, pressure controls, safety valves, dry cutout protection and operator access must be reviewed before commissioning.
For a faster quote, share expected daily load, site city, preferred capacity, available utilities and current workflow for Steam Generators & Boilers. Raj Sons can compare options such as 6 kW, 12 kW, 18 kW, 27 kW for applications like Ironing tables, Flatwork ironers, Laundry finishing and suggest whether the priority should be throughput, finish quality, compact footprint, lower heating load or process flexibility.
Planning Notes
- List every connected press, table, ironer and iron so total steam demand can be estimated.
- Confirm feed water treatment because scale can reduce efficiency and shorten heater or vessel life.
- Plan safe exhaust, fuel storage or electrical isolation depending on the selected heating source.
- Leave service space for level gauges, pumps, valves, controls and periodic inspection.
Specification table
Model RangeRS-SG Series
Power Options6 kW, 12 kW, 18 kW, 27 kW
Electric Steam OutputApprox. 6 kg/hr to 28.5 kg/hr
Diesel Steam OutputApprox. 30 kg/hr, 50 kg/hr, 100 kg/hr
Pressure85 psi to 105 psi
Voltage220 V / 415 V options
Frequency50/60 Hz
Safety SystemsSafety valve, level gauge, pressure control, dry cutout
Specifications are indicative and may vary by machine model, customization and utility conditions.
